GNU Radio

  1. Install GNU Radio (Installation instructions at the gnu radio wiki)

    On Linux: sudo apt-get install gnuradio

    On Windows: If you want to use the Adalm Pluto, use the wsl instructions

  2. Install any blocks necessary for your SDR
    Lime devices:
    install gr-limesdr

    On Linux, installation instructions can be found on the github page. On Windows, installation instructions can be found on the older github page.

    Adalm-Pluto:

    Not available on Mac. Comes with GNU Radio 3.10 on Linux, for Windows follow these instructions.

    USRP:

    Chances are, you have the blocks for this installed with GNU radio. If you have not downloaded the software for using USRP devices previously, you may have to do a little extra setup: sudo /usr/local/lib/uhd/utils/uhd_images_downloader.py This command installs the images that let it connect to the board. Once it finishes installing, you can test that it worked using the instructions on the USRP tutorial

    Tip

    If building GNU radio from source (Linux), you will see instructions to install UHD before proceeding with the rest of installation.

    RTL-SDR:

    On Linux, run sudo apt-get install rtl-sdr soapysdr-module-rtlsdr. You can check that this worked with SoapySDRUtil --info. You should see a message which includes:

    Available factories... <other_factories>, rtlsdr

  3. Ensure that your radio is plugged in with an antenna that supports VHF

  4. Open GNU Radio Companion

  5. Open the FM receiver example (pulled from the github for gnuradio plugin for lime devices).

  6. Use CTRL+F to search for a receiver block for your radio:
    SDR Receiver blocks

    SDR

    Block name

    Lime

    LimeSDR Source (RX)

    Pluto

    PlutoSDR Source

    RTL-SDR

    Soapy RTLSDR Source

    USRP

    UHD: USRP Source

  7. Drag and drop the block into the workspace. Connect the “out” port to the “in” port of the Low Pass Filter block.

  8. Configure the block:
    SDR block Configuration

    Lime

    Pluto

    Under the General tab:

    • RF frequency - baseband*1e6

    • Sample rate - samp_rate

    Under the General tab:

    • LO Frequency - int(baseband*1e6)

    • Sample Rate - int(samp_rate)

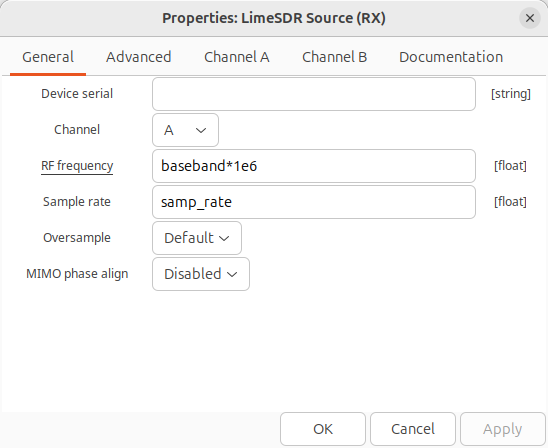

    Image displaying LimeSDR Source (RX) properties window, on general tab. RF frequency has been set to baseband*1e6, Sample rate has been set to samp_rate, and all other fields are left as defaults.

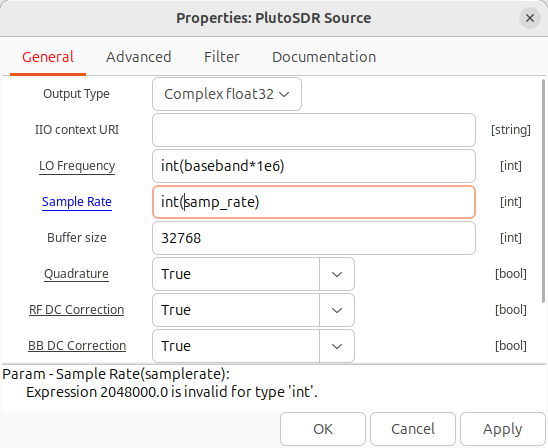

    PlutoSDR Source properties window, on General tab. LO Frequency has been set to int(baseband*1e6) and Sample Rate is set to int(samp_rate). All other fields are default.

    RTL-SDR

    USRP

    Under the RF Options tab:

    • Center Freq (Hz) - baseband*1e6

    • AGC - True

    Under the General tab:

    • Sample Rate autopopulates

    Under the RF Options tab:

    • Ch0: Center Freq (Hz) - baseband*1e6

    • Ch0: AGC - Enabled

    Under the General tab:

    • Samp rate autopopulates

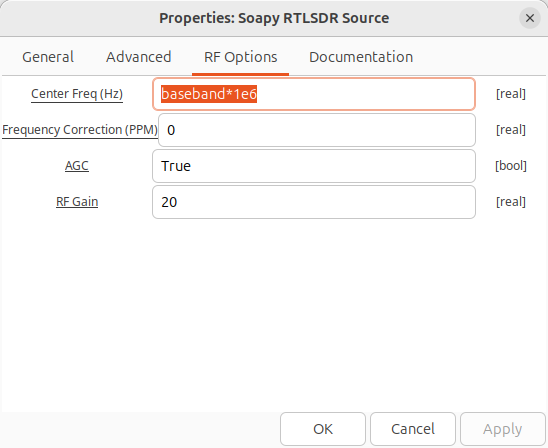

    Soapy RTLSDR Source properties window, on RF Options tab. Center Freq (Hz) field is highlighted and has been set to baseband*1e6, and AGC has been changed to True. All other fields are default."

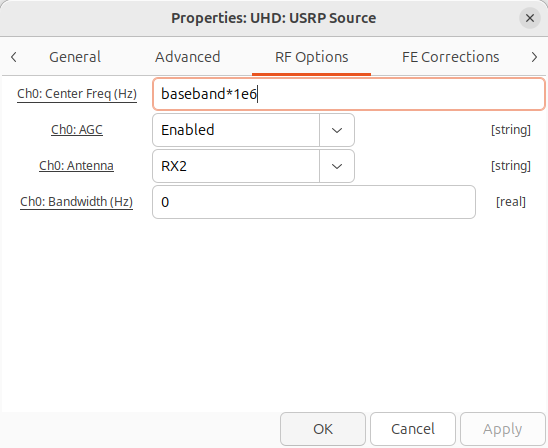

    UHD: USRP Source properties window, on RF Options tab. Ch0: Center Freq (Hz) has been set to baseband*1e6 and Ch0: AGC has been set to Enabled

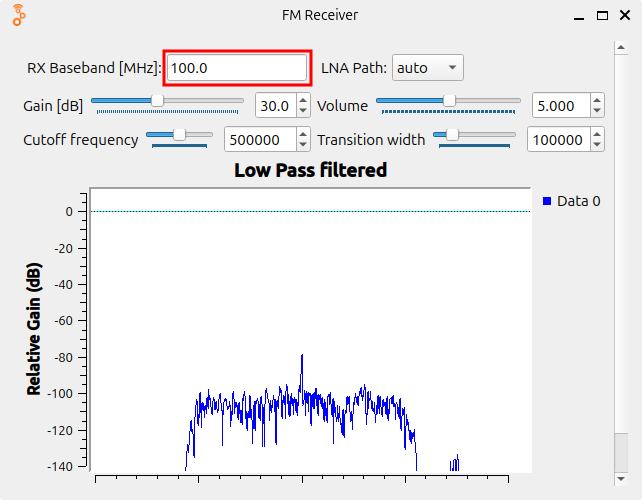

  9. Press the play button and in the new window that opens, change the baseband field to an FM radio station.
